B'spoke Model One
2021 B'Spoke One
B'Spoke Model One : Converge your cycling into one bike
- Optimized for 700 32 to 38 mm tyre.
- Maximum tyre size 650 x 50 mm tyre
- Optimized for Single 42T , GRX 31/48 or Rival AXS 30/43 & 33/46 double
- 34/50 chainring can be used

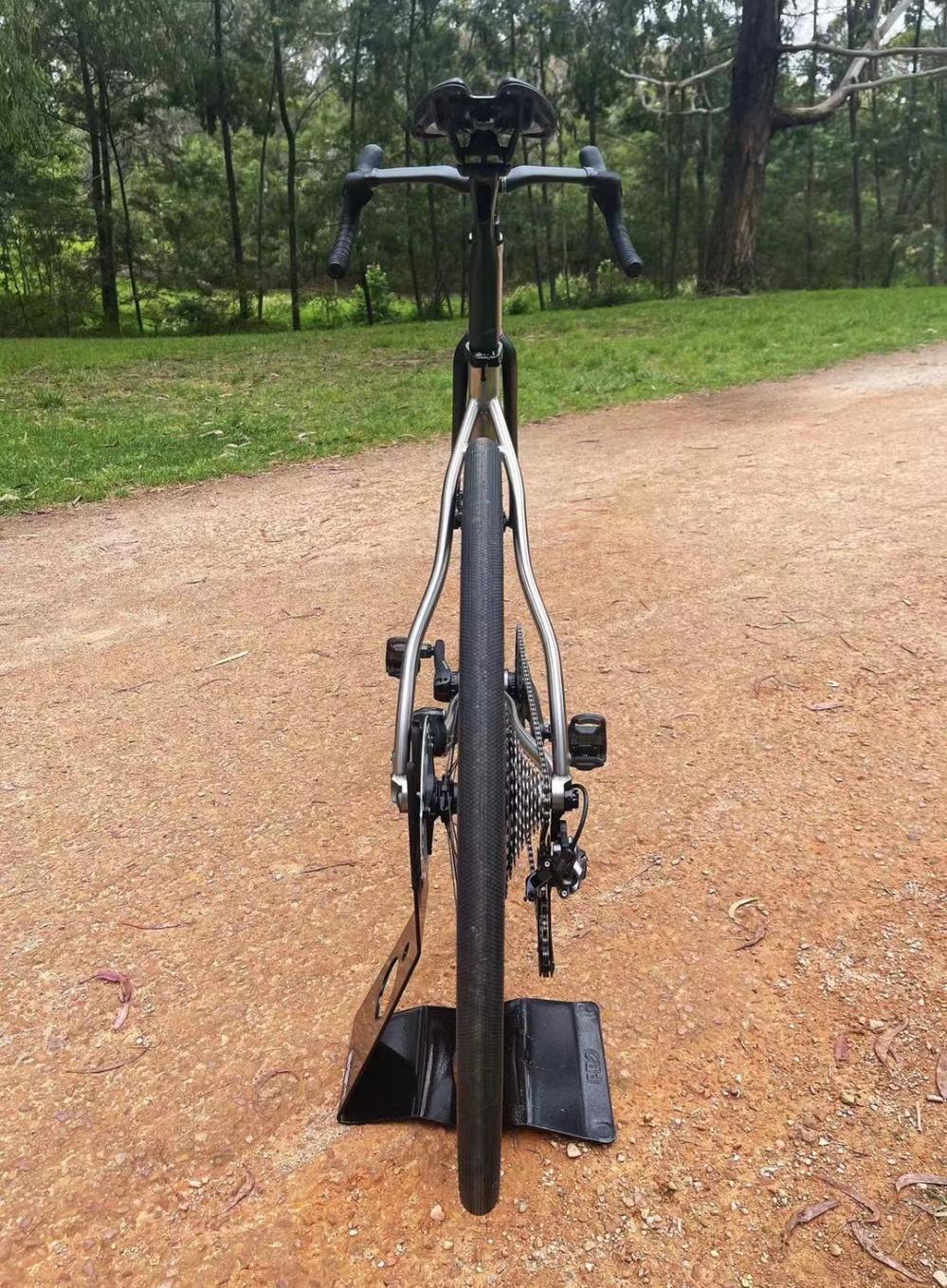

- Curve seatstay for better vertical compliance
- T47 68mm BB ( open standard )
- 142 x 12mm rear, 100 x 12mm front thru axle ( Open Standard )
- For flat mount caliper ( Open standard )
- Frames adapted FSA ACR headset standard for internal cable routing ( Open Standard )
- 1 1/8" to 1 1/2"fork ( Open Standard )
- 3 set of water bottle cage bosses
- Lower seatstay rack mounting boss
| Application Note | |
|
Fast group ride ( road ) |
yes |
| Endurance riding | yes |
| Ultra endurance | yes |
| Communting | yes |
| Bikepacking | yes |
| Gravel | yes |
Although we never build bikes even remotely similar, the price just for your reference. We more than happy to customize the bike for your special needs.
Recommended build & price
https://docs.google.com/spreadsheets/d/1iqZmRj-yc-QXmA652p0TpaHdEA7nTfu_64rRnlEWhBA/edit#gid=0

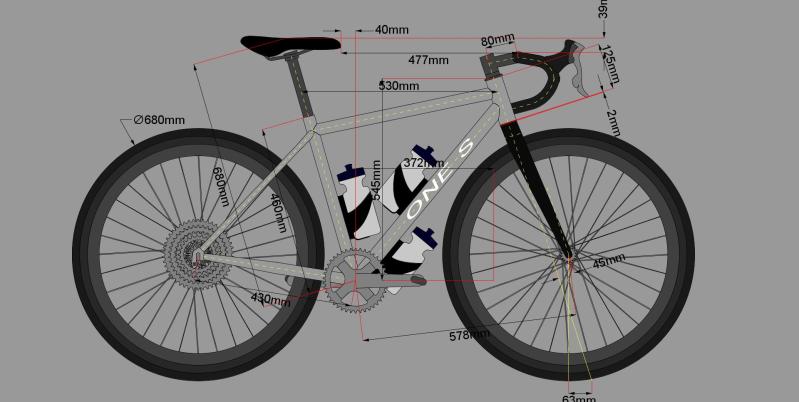

Stock S with 44mm down tube, optimise for 650B 45 to 50mm / 700 x 28 to 32mm tyre

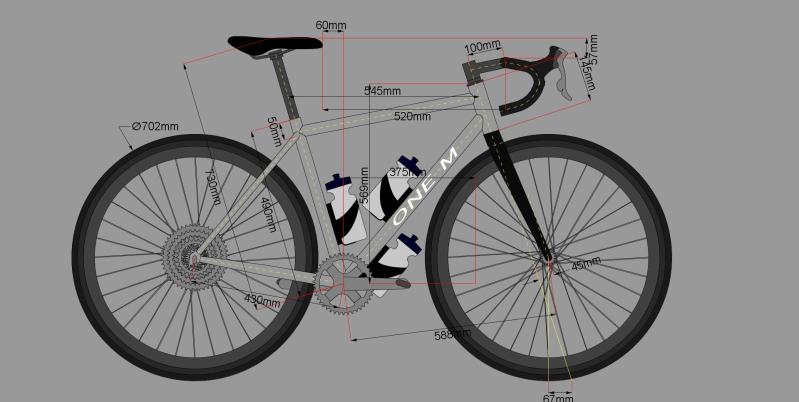

Stock M with 48mm down tube, optimise for 700 x 32 to 40mm / 650b 1.95 to 2.1 tyre

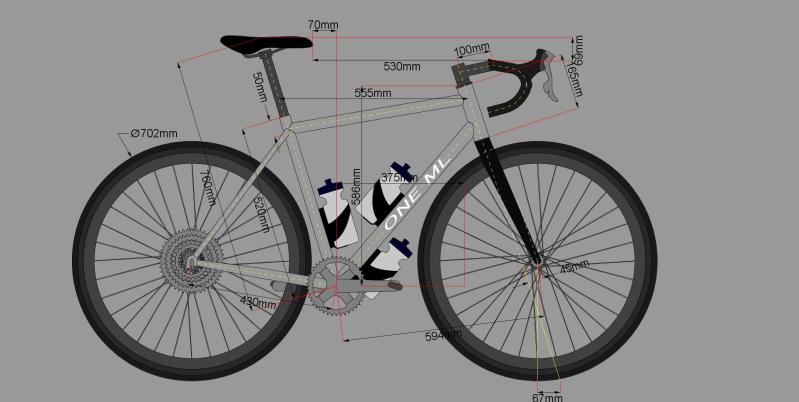

Stock MLwith 48mm down tube, optimise for 700 x 32 to 40mm / 650b 1.95 to 2.1 tyre

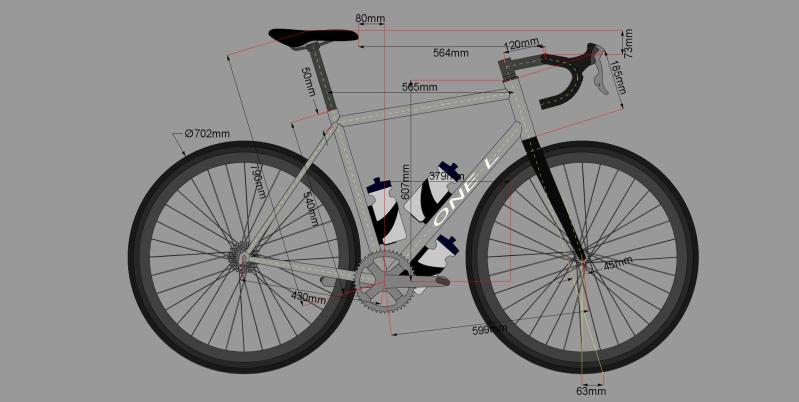

Stock L with 48mm down tube, optimise for 700 x 32 to 40mm / 650b 1.95 to 2.1 tyre

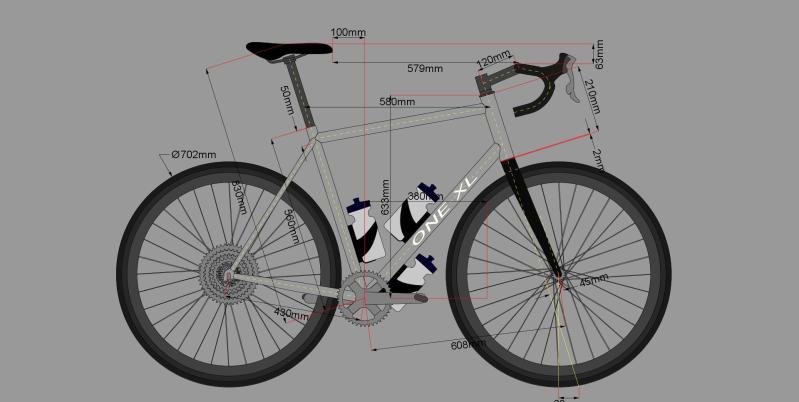

Stock XL with 48mm down tube, optimise for 700 x 32 to 40mm / 650b 1.95 to 2.1 tyre
